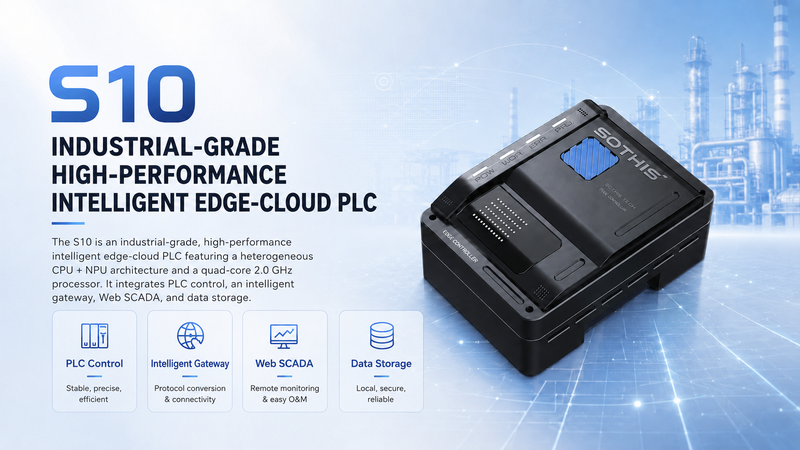

SOTHIS-S10: Control, Connectivity, Monitoring & Storage in One Edge ControllerSOTHIS S10 | Control, Connectivity, Monitoring & Storage in One Edge Controller Industrial-Grade High-Performance Intelligent Edge-Cloud PLC Integrated PLC · Gateway · Web SCADA · Data Storage Product Positioning In industrial environments, PLC control, protocol gateways, SCADA, and data storage are typically handled by separate devices and software systems. The S10 integrates these four capabilities into a single industrial-grade platform, providing real-time control, device connectivity, lightweight monitoring, and historical data storage at the edge. 01S10 at a Glance High-Performance Hardware Platform + Integrated Edge Capabilities Built on a heterogeneous CPU + NPU architecture and a quad-core 2.0 GHz processor, the S10 provides PLC control, an intelligent gateway, Web SCADA, and data storage for industrial automation. It can serve as both the control core and an edge platform for field-device connectivity and data processing. Quad-Core 2.0 GHzHigh-Performance Processor, stable computing performance for control, communications, and visualization. CPU + NPUHeterogeneous Architecture, supports real-time control and edge intelligence processing. -40 to 85°CIndustrial Temperature Range, built for harsh environments and continuous operation. 4-in-1Integrated Edge Capabilities, PLC + Gateway + Web SCADA + Data Storage.

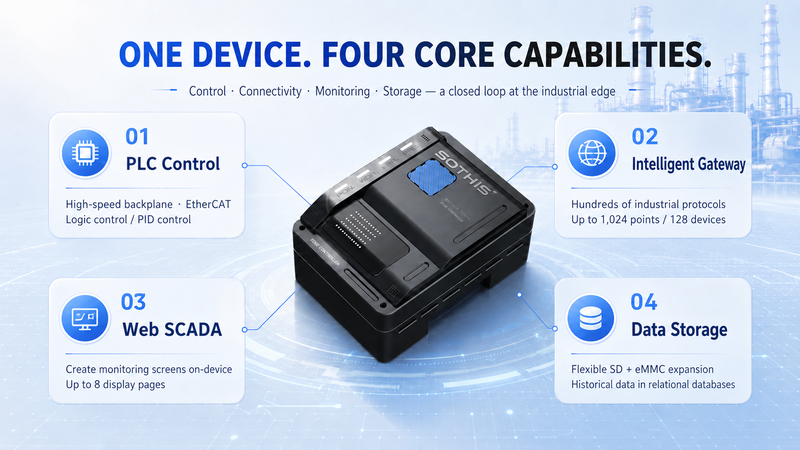

02One Device, Four Core Capabilities, One Complete Edge-Control Loop Integrated control, connectivity, monitoring, and data management at the edge  01 COREPLC Control | Real-Time Control at the Edge The S10 features a high-speed backplane and connects to distributed intelligent EtherCAT slave nodes. It supports logic control, PID control, and multi-device coordination.
Key Specs: 16 EtherCAT slaves | 1,024 I/O | Logic + PID 02 COREIntelligent Gateway | Rapid Integration of Heterogeneous Devices In multi-vendor, multi-protocol industrial environments, the S10 provides a broad range of data acquisition and forwarding protocols for edge-side protocol adaptation, data aggregation, and device coordination.
Key Specs: 100+ protocols | ≤1,024 data points | ≤128 devices 03 COREWeb SCADA | Deploy Monitoring Screens Directly on the Device Built-in lightweight Web SCADA allows monitoring pages to be created directly on the S10, reducing the complexity of deploying and maintaining additional software.
Key Specs: Up to 8 pages | No third-party SCADA required 04 COREData Storage | Make Historical Data Traceable and Actionable The S10 supports flexible combinations of onboard and expansion-card storage. Historical data can be stored in relational databases to support trend analysis, quality traceability, and operations and maintenance (O&M).

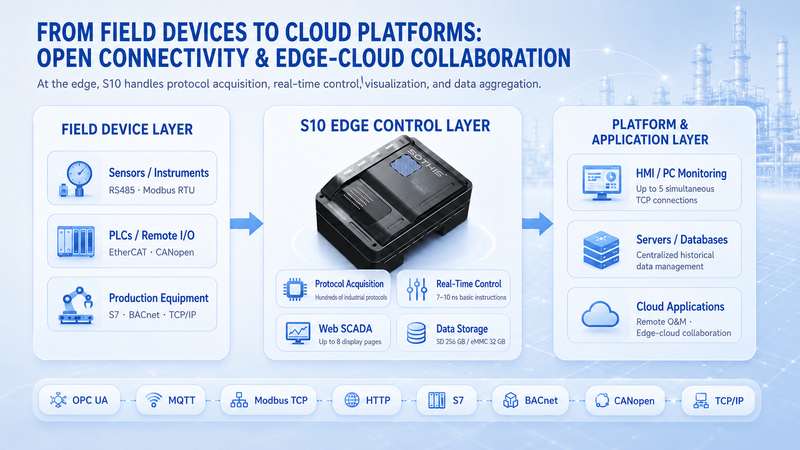

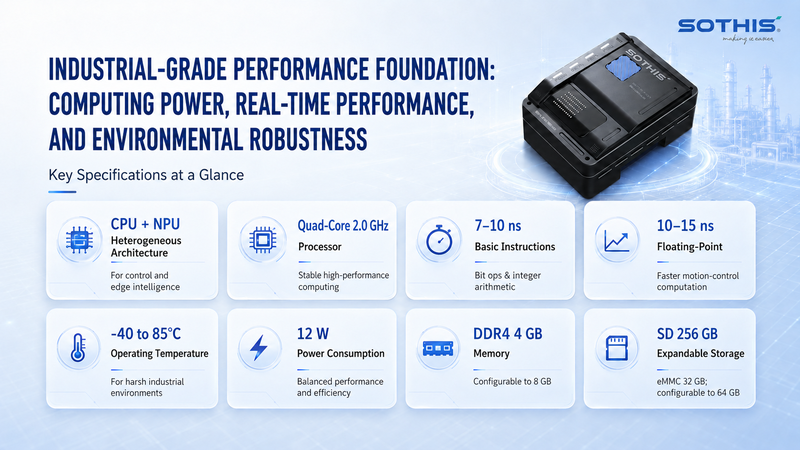

Key Specs: SD 256 GB | eMMC 32/64 GB | DDR4 4/8 GB 03Industrial-Grade Performance Foundation Real-Time Control, Reliable Communications, and Long-Term Operation  The S10 hardware platform is designed to handle control, protocol data acquisition, Web-based monitoring, data storage, and edge-cloud collaboration concurrently. Its heterogeneous CPU + NPU architecture, quad-core 2.0 GHz processor, and expandable storage support concurrent workloads. 2 Gigabit Ethernet 2 USB Host 3.0 1 RS-485 Serial 5 Concurrent TCP Connections Environmental RobustnessOperating temperature: -40°C to 85°C; operating humidity: 5% to 95% RH, non-condensing. The PCB features a conformal coating. External supply: 24 VDC; power consumption: 12 W. Reliability and DiagnosticsBuilt-in diagnostics cover CPU operation, internal memory, communications, I/O, and other faults, helping engineers identify problems quickly. 04Open Connectivity & Edge-Cloud Collaboration From Field Devices and Control Networks to Servers and Cloud Applications  At the field layer, the S10 connects sensors, instruments, PLCs, distributed EtherCAT slave nodes, and production-line equipment. At the edge layer, it handles protocol data acquisition, real-time control, Web SCADA, and data storage. At the platform layer, it connects to HMIs, PCs, servers, databases, and cloud applications. Integration Value 05Engineering-Centric Development & O&M Standards-Based Programming, Comprehensive Diagnostics, and Lightweight Monitoring IEC 61131-3-Compliant ProgrammingSupports Ladder Diagram (LD), Instruction List (IL), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), and Continuous Function Chart (CFC), enabling engineers with different programming backgrounds to get started quickly. Multi-Channel Communications & MonitoringSupports up to five concurrent TCP connections for programming and commissioning, HMI access, PC monitoring, and other tasks. Combined with Web SCADA, it provides an integrated workflow from development and commissioning through runtime monitoring. Rapid TroubleshootingDiagnostic functions for CPU, memory, communications, and I/O faults help reduce on-site troubleshooting time and improve maintenance efficiency. Device Coordination & Cloud ManagementSupports coordination among different device types and connection to cloud- and server-based management platforms, meeting the needs of distributed sites and centralized management. Engineering Value 06Typical Application Scenarios Flexible Deployment Across a Range of Industrial Automation Projects  The S10 can serve as the edge-control core of a production line or machine. It can also be used for connectivity upgrades to existing equipment, industrial data acquisition, lightweight monitoring, remote O&M, and edge-cloud collaboration. The final configuration should be selected based on the site's I/O scale, real-time requirements, protocol mix, and system architecture. 07Key Technical Specifications Specifications Based on the Product Brochure
08Conclusion As industrial sites accelerate digitalization and intelligent transformation, edge systems require not only stable and reliable control, but also open connectivity, real-time processing, historical data storage, and coordinated management. The SOTHIS S10 integrates PLC control, an intelligent gateway, Web SCADA, and data storage into a single platform. With industrial-grade reliability, it helps enterprises simplify system architecture, reduce device integration and O&M costs, and enable reliable data acquisition, effective control, clear visualization, and practical use of field data. From standalone machines to complete production lines, and from field control to edge-cloud collaboration, the S10 provides a flexible and efficient edge-control platform for industrial automation, connectivity upgrades to existing equipment, and smart manufacturing applications.
